Complete Machinery for Presswood Pallet Production
From hydraulic hot presses to rotary dryers, crushers, glue mixers, and molds. Every machine engineered for 24/7 industrial production.
Core Production Equipment

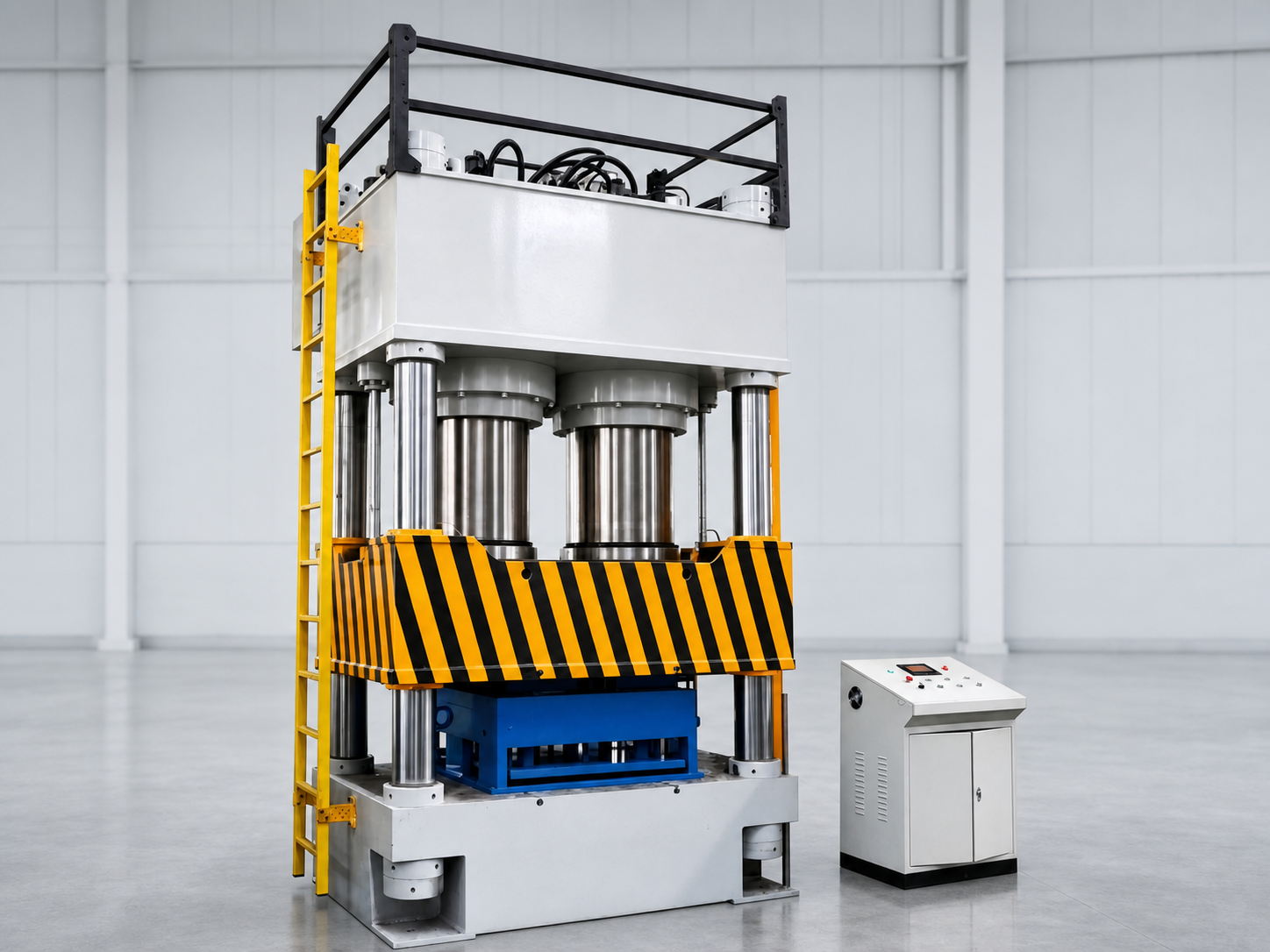

Molded Pallet Hydraulic Press
The molded pallet hot press is new molded-pallet production equipment and the dedicated core forming machine for molded pallets. It uses a hot-press process to form a pallet in one operation. Recyclable raw materials such as sawdust, waste wooden pallets, waste wood, timber, kraft paper, straw, bamboo, and even plastic can be used to make molded pallets. By changing the matching mold, it can produce nine-foot, grid-base, Japanese-style, stringer-style, and other molded pallet types. It can be used as a stand-alone machine or in an automated production line.
8 colors
6

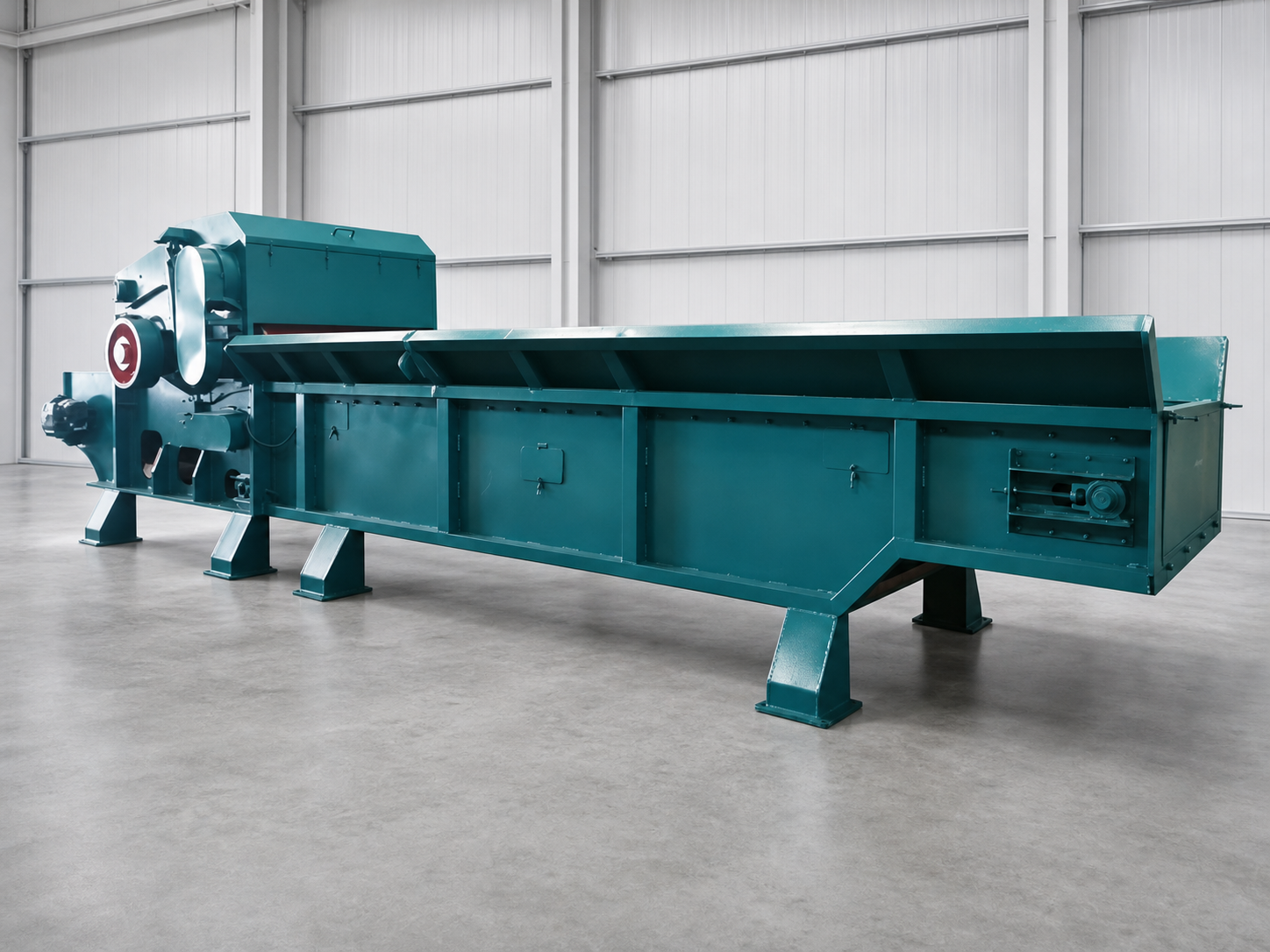

Wood Crusher
It is mainly used for the coarse-crushing stage of wood processing. It can process wood containing nails, wooden pallets, discarded construction formwork, wooden racks, branches, timber, logs, and waste furniture. Chain-plate conveyor feeding is smooth and substantially improves production efficiency.
8 colors
6
Wood Debarker
This equipment is mainly used in the wood-processing crushing series. It cuts logs, branches, slabwood, waste veneer, bamboo, cotton stalks, and other non-wood fibrous stems into chips of specified dimensions.
8 colors
6

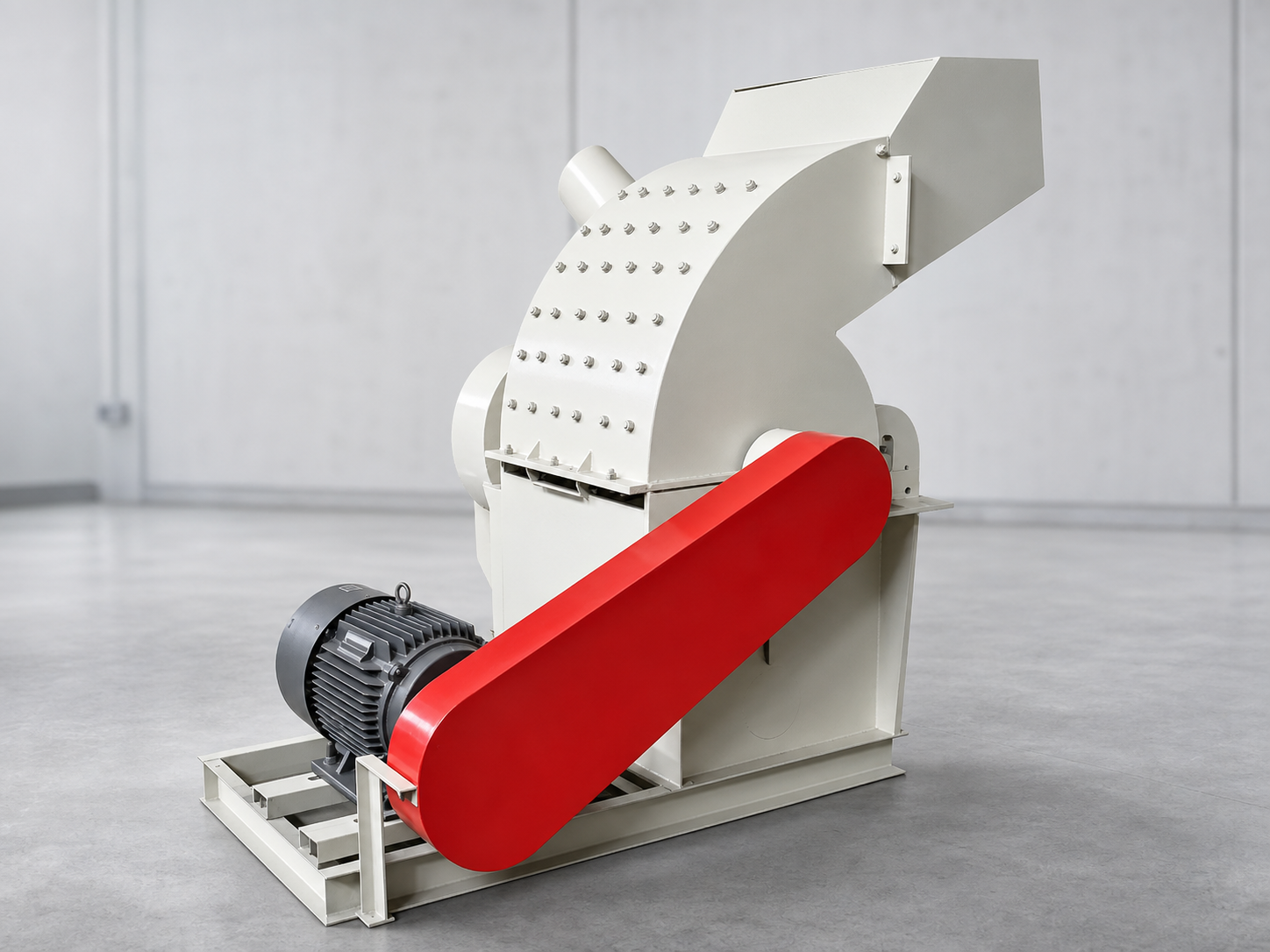

Wood Pulverizer
The wood pulverizer is dedicated equipment for pulverizing wood into sizes suitable for pallet production. It has high output and a broad application range. It can pulverize wood, branches, wood chips, offcuts, corn stalks, and similar materials into sawdust of specified dimensions for particleboard, molded pallets, and related industries.
8 colors
6

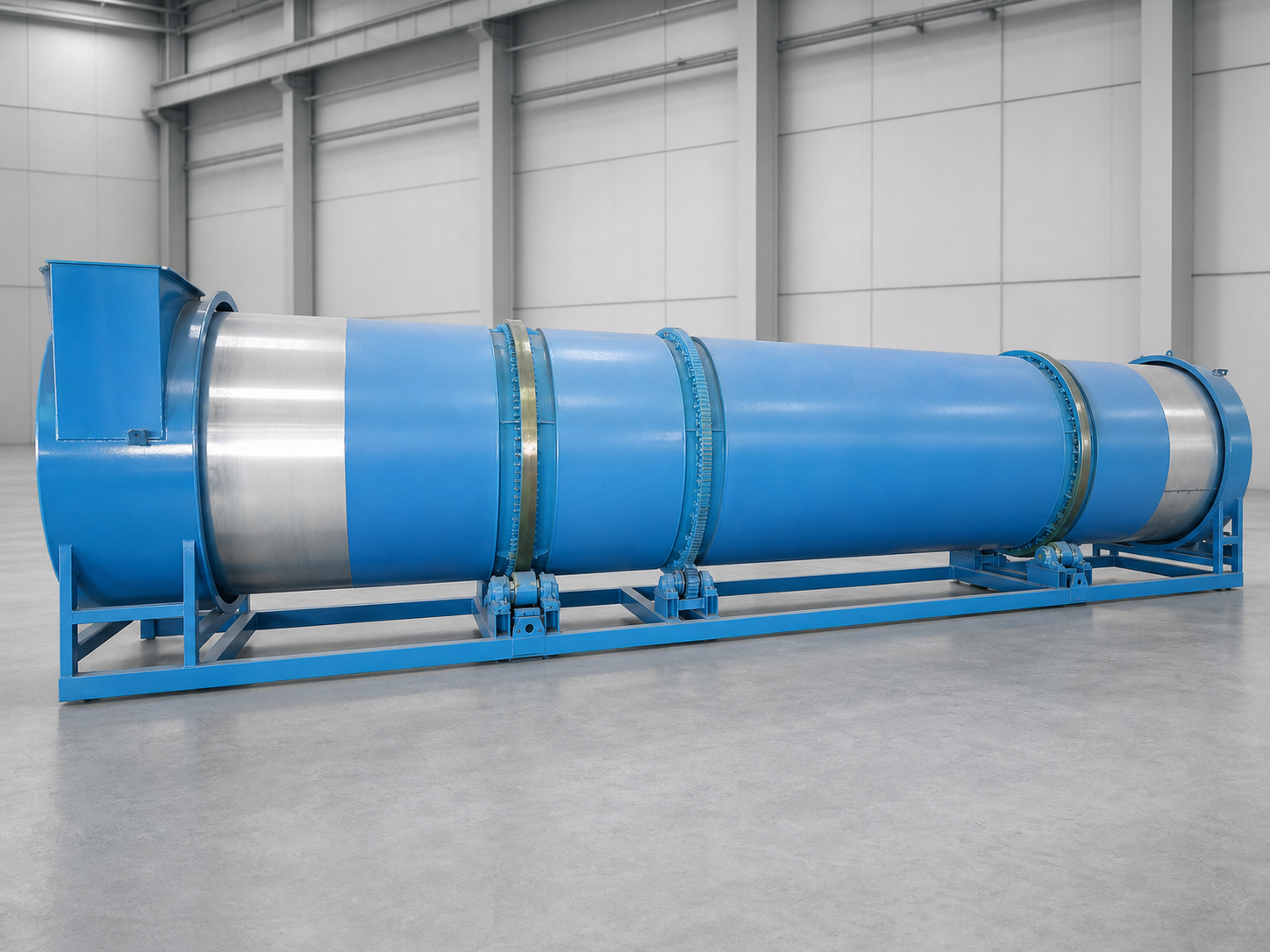

Sawdust Dryer
A sawdust dryer is a mechanical device that uses thermal energy to reduce moisture in raw materials. According to the drying principle, dryers are divided into sawdust airflow dryers and sawdust drum dryers. In the processes of molded-pallet and pallet-block production lines, the sawdust drum dryer is necessary equipment for drying wood. The operating temperature of the drum dryer can reach 150–180°C, and the moisture content of dried wood is below 10%.
8 colors
6

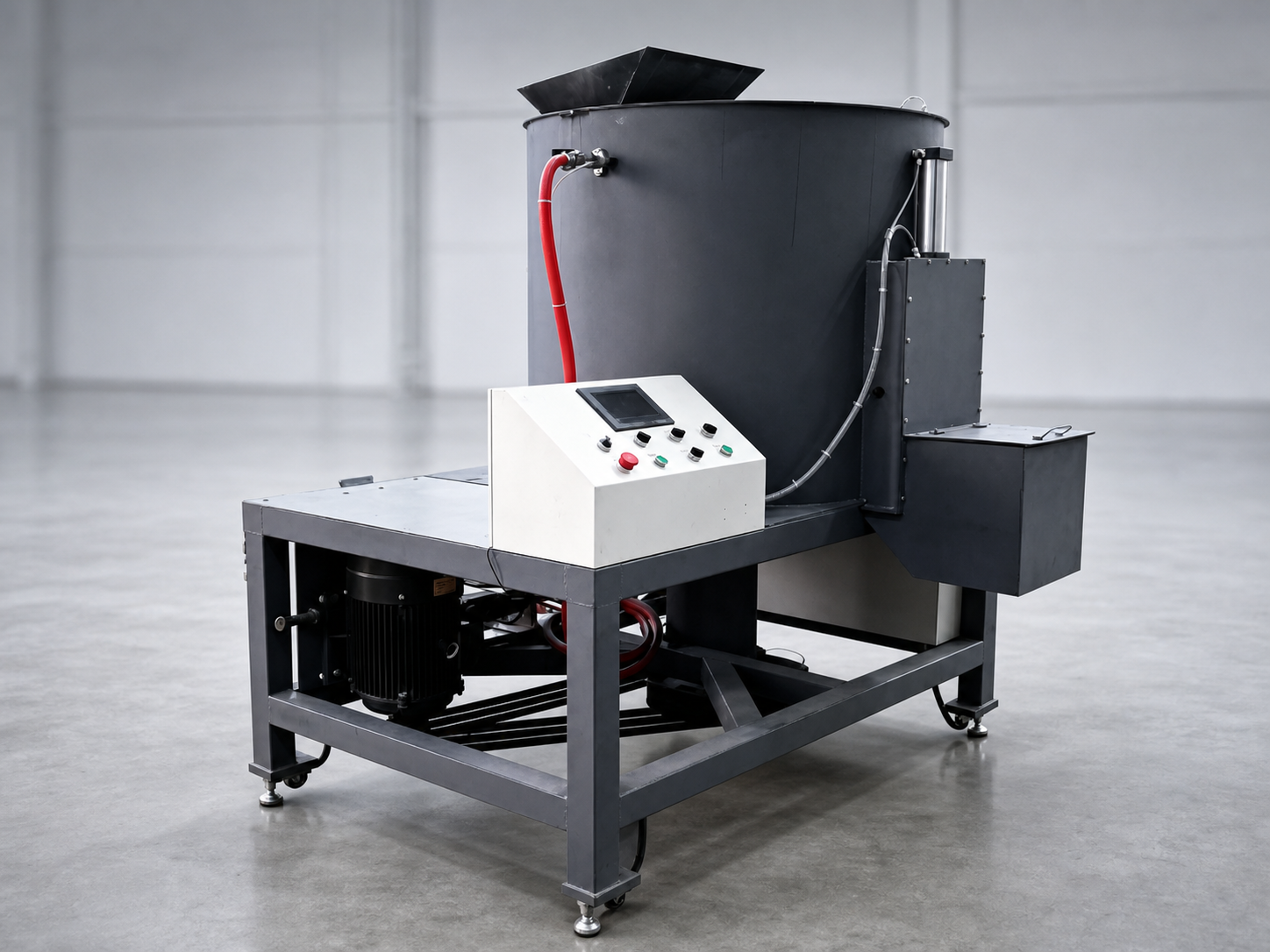

Glue Mixer
Used on molded-pallet production lines, this machine mixes shavings, sawdust, and glue evenly. Put the raw materials into the glue mixer, add glue, and start it with one button to mix the material evenly. Then open the discharge outlet and the mixed finished material discharges automatically.
8 colors
6

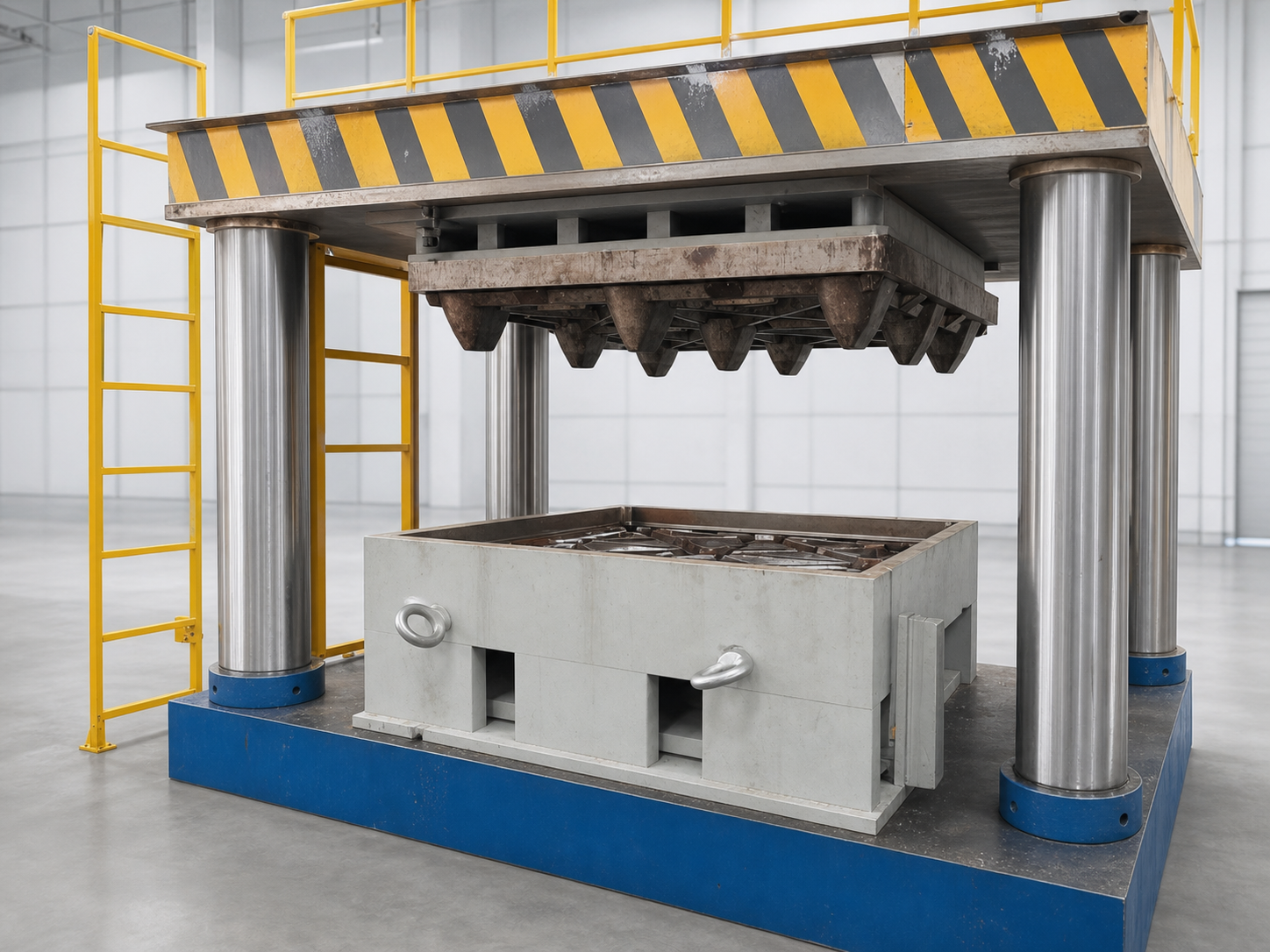

Pallet Molds
The mold determines the molded pallet’s external structure, dimensional accuracy, surface quality, and load-bearing strength. After glue mixing, sawdust is cured and formed under high temperature and pressure in the mold cavity, then demolded to obtain the finished pallet.
8 colors
6
Automatic Pallet Take-Out Robot
6-axis robotic take-out system with vacuum suction cups for hot molded pallets. One robot serves two presses continuously, replacing manual unloading and supporting 24/7 production.
Robotic offloading
AutoG
Quick Line Selection Guide
Match your annual output target to the right configuration. All lines include full auxiliary equipment — we don’t sell standalone presses.
| Annual Output | Press Model | Line Type | Min. Floor Space | Total Power |
|---|---|---|---|---|
| 30,000–80,000 pallets | EMP-500T | Semi-Automatic | 600 m² | ~150 kW |
| 80,000–200,000 pallets | EMP-800T / 1000T | Semi-Auto + Full Auxiliary | 1,000 m² | ~250 kW |
| 200,000–500,000+ pallets | 2× EMP-1000T | Fully Automatic | 1,500+ m² | ~400 kW |
Why We Never Sell “Just The Press”
The most common buyer mistake: assuming the hydraulic press alone will produce pallets. In reality, the press is only the final step. Without properly crushed (≤5mm), accurately dried (8-12% MC), and uniformly resin-blended feedstock, the press will produce either:
- Blowout pallets — moisture above 12% causes steam explosions on mold opening
- Weak pallets — uneven resin distribution creates structural failure points
- Inconsistent pallets — oversized particles prevent proper fiber bonding
That’s why every EMP quotation includes the full auxiliary chain as standard. Your success is our reputation.
Need Help Choosing the Right Equipment?
Send us your target output, raw material type, and factory floor plan. Our engineers will recommend the optimal configuration within 48 hours.
Request Feasibility Report
