Wood Pulverizer
The wood pulverizer is dedicated equipment for pulverizing wood into sizes suitable for pallet production. It has high output and a broad application range. It can pulverize wood, branches, wood chips, offcuts, corn stalks, and similar materials into sawdust of specified dimensions for particleboard, molded pallets, and related industries.

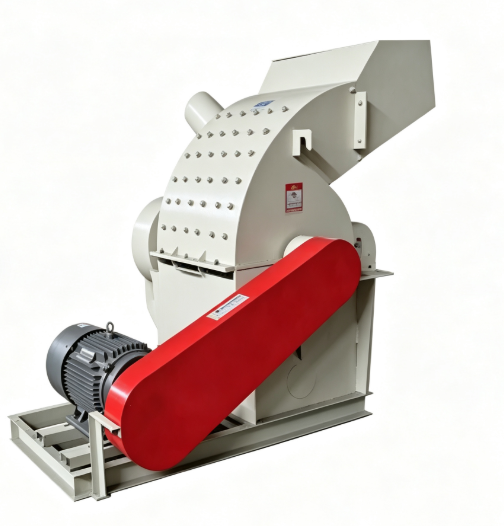

Equipment image
Technical Specifications
| Model | F-800 | F-1000 | F-1200 | F-1500 |
|---|---|---|---|---|
| Screen width | 780 mm / 30.71 in | 980 mm / 38.58 in | 1180 mm / 46.46 in | 1480 mm / 58.27 in |
| Feed opening width | 680 mm / 26.77 in | 880 mm / 34.65 in | 1050 mm / 41.34 in | 1350 mm / 53.15 in |
| Feed opening height | 380 mm / 14.96 in | 400 mm / 15.75 in | 420 mm / 16.54 in | 450 mm / 17.72 in |
| Knife roller speed | 1200 rpm / 12 rpm | 1200 rpm / 12 rpm | 2000 rpm / 2 rpm | 2600 rpm / 26 rpm |
| Main motor power | 45 kW / 60.35 hp | 55 kW / 73.76 hp | 75 kW / 101 hp | 110 kW / 148 hp |
| Minimum output | 1 t/h / 1.1 ton/h | 2 t/h / 2.2 ton/h | 3 t/h / 3.31 ton/h | 5 t/h / 5.51 ton/h |
| Maximum output | 2 t/h / 2.2 ton/h | 3 t/h / 3.31 ton/h | 5 t/h / 5.51 ton/h | 8 t/h / 8.82 ton/h |
Main Equipment
Equipment Performance Features
- 1. The hammer plates use thickened manganese steel for high efficiency.
- 2. The equipment uses balance technology for exceptionally stable operation.
- 3. The manganese-steel liner plate is formed in one piece for high precision.
- 4. A high-hardness screen is used; it is not prone to breaking and provides good discharge performance.
