Glue Mixer
Used on molded-pallet production lines, this machine mixes shavings, sawdust, and glue evenly. Put the raw materials into the glue mixer, add glue, and start it with one button to mix the material evenly. Then open the discharge outlet and the mixed finished material discharges automatically.

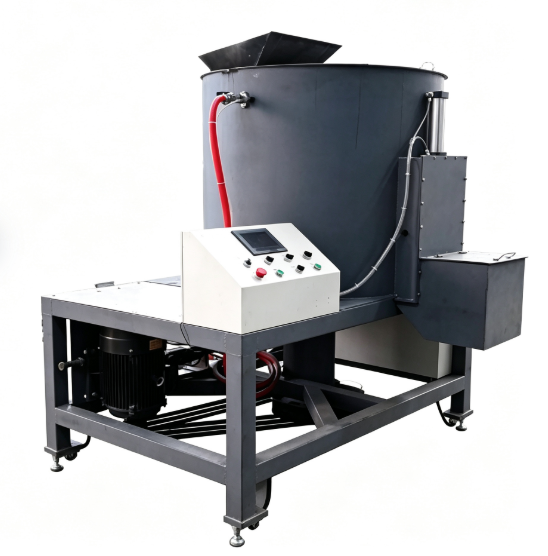

Equipment image
Technical Specifications
| Model | BJ-300 | BJ-600 |
|---|---|---|
| Discharge method | Pneumatic discharge | Pneumatic discharge |
| Mixing shaft speed | 400 rpm / 4 rpm | 400 rpm / 4 rpm |
| Main motor power | 7.5 kW / 10.06 hp | 11 kW / 14.75 hp |
| Output | 300 kg/h / 661 lb/h | 600 kg/h / 1323 lb/h |
Main Equipment
Equipment Performance Features
- 1. Operation is simple. One person can operate the glue mixer; a fully automatic glue mixer can be used in the production line.
- 2. The footprint is small. In a small pallet-block production line, the glue mixer occupies only about 1 m²; even in a large molded-pallet production line, its footprint is small.
- 3. Production is efficient. The glue mixer uses an advanced and rational structural design, automatically meters glue, and evenly mixes the raw materials and glue, improving production efficiency.
- 4. Operation is stable, energy consumption is low, and finished-product quality is high.
- 5. It saves raw materials, while labour and maintenance costs are low.
- 6. It is strong and durable. The glue mixer is made of high-quality steel and is not prone to rusting or deformation.
