Molded Pallet Hydraulic Press
The molded pallet hot press is new molded-pallet production equipment and the dedicated core forming machine for molded pallets. It uses a hot-press process to form a pallet in one operation. Recyclable raw materials such as sawdust, waste wooden pallets, waste wood, timber, kraft paper, straw, bamboo, and even plastic can be used to make molded pallets. By changing the matching mold, it can produce nine-foot, grid-base, Japanese-style, stringer-style, and other molded pallet types. It can be used as a stand-alone machine or in an automated production line.

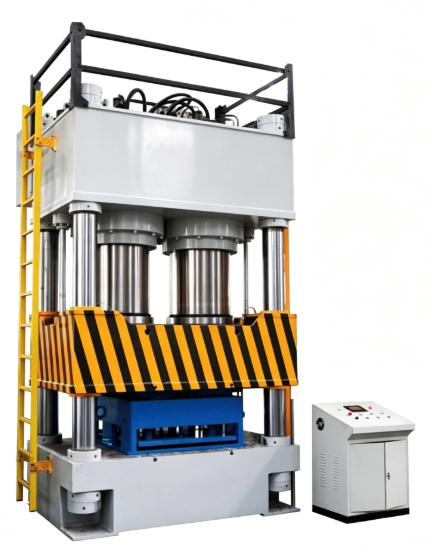

Equipment image
Technical Specifications
| Model | Y-1250 | Y-1600 | Y-2000 | Y-2500 | |
|---|---|---|---|---|---|
| Main cylinder nominal force | 12500 kN / 2810112 lbf | 16000 kN / 3596943 lbf | 20000 kN / 4496179 lbf | 25000 kN / 5620224 lbf | |
| Return nominal force | 400 kN / 89924 lbf | 400 kN / 89924 lbf | 500 kN / 112404 lbf | 500 kN / 112404 lbf | |
| Ejection force | 300 kN / 67443 lbf | 400 kN / 89924 lbf | 400 kN / 89924 lbf | 630 kN / 14163 lbf | |
| System working pressure | 25 MPa / 3626 psi | 25 MPa / 3626 psi | 25 MPa / 3626 psi | 25 MPa / 3626 psi | |
| Slide stroke | 700 mm / 27.56 in | 700 mm / 27.56 in | 800 mm / 31.5 in | 900 mm / 35.43 in | |
| Ejection stroke | 200 mm / 7.87 in | 200 mm / 7.87 in | 250 mm / 9.84 in | 300 mm / 11.81 in | |
| Maximum opening height | 1200 mm / 47.24 in | 1300 mm / 51.18 in | 1400 mm / 55.12 in | 1600 mm / 62.99 in | |
| Minimum opening height | 500 mm / 19.69 in | 600 mm / 23.62 in | 600 mm / 23.62 in | 700 mm / 27.56 in | |
| Slide speed | Fast descent | 180 mm/s | 180 mm/s | 170 mm/s | 170 mm/s |
| Working | 6-10 mm/s | 6-10 mm/s | 6-10 mm/s | 5-8 mm/s | |
| Fast return | 180 mm/s | 180 mm/s | 160 mm/s | 160 mm/s | |
| Effective table area | Left/right | 1700 mm / 66.93 in | 1800 mm / 70.87 in | 2100 mm / 82.68 in | 2500 mm / 98.43 in |
| Front/back | 1400 mm / 55.12 in | 1450 mm / 57.09 in | 1500 mm / 59.06 in | 1700 mm / 66.93 in | |
| Servo motor power | 55 kW / 73.76 hp | 55 kW / 73.76 hp | 65 kW / 87.17 hp | 75 kW / 101 hp | |
Main Equipment
Equipment Performance Features
- 1. Servo control system.
- a. Energy saving of 25%–55%.
- b. Noise below 80 dB.
- c. Temperature rise below 25°C.
- 2. The equipment uses a three-beam, four-column structure. Its main structure is optimized by finite-element analysis for a simple, economical, and practical design.
- 3. The hydraulic system uses an integrated cartridge-valve system for reliable action, long service life, and low hydraulic impact.
- 4. An independent electrical control system provides reliable operation and convenient maintenance.
- 5. Equipment buttons are centrally controlled and provide adjustment and semi-automatic operating modes.
- 6. It can perform fixed-stroke and fixed-pressure forming processes and includes functions such as pressure-hold delay.
- 7. The working pressure, speed, and stroke range of the slide can be adjusted according to process requirements.
