Wood Crusher
It is mainly used for the coarse-crushing stage of wood processing. It can process wood containing nails, wooden pallets, discarded construction formwork, wooden racks, branches, timber, logs, and waste furniture. Chain-plate conveyor feeding is smooth and substantially improves production efficiency.

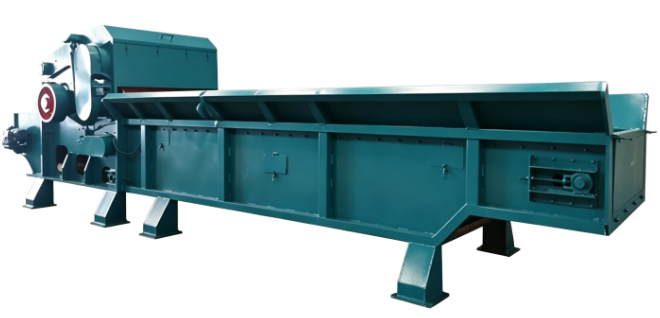

Equipment image
Technical Specifications
| Model | P-600 | P-800 | P-1000 | P-1200 |
|---|---|---|---|---|
| Feeding method | Automatic feeding | Automatic feeding | Automatic feeding | Automatic feeding |
| Feed opening width | 600 mm / 23.62 in | 800 mm / 31.5 in | 1000 mm / 39.37 in | 1200 mm / 47.24 in |
| Feed opening length | 600 mm / 23.62 in | 600 mm / 23.62 in | 600 mm / 23.62 in | 600 mm / 23.62 in |
| Upper pressure roller power | 3 kW / 4.02 hp | 3 kW / 4.02 hp | 4 kW / 5.36 hp | 4 kW / 5.36 hp |
| Lower pressure roller power | 4 kW / 5.36 hp | 4 kW / 5.36 hp | 5.5 kW / 7.38 hp | 5.5 kW / 7.38 hp |
| Metal removal device | Automatic | Automatic | Automatic | Automatic |
| Main motor power | 30 kW / 40.23 hp | 37 kW / 49.62 hp | 45 kW / 60.35 hp | 55 kW / 73.76 hp |
| Minimum output | 0.8 t/h / 0.88 ton/h | 2.0/h | 3.0 t/h / 3.31 ton/h | 5.0 t/h / 5.51 ton/h |
| Maximum output | 2.0 t/h / 2.2 ton/h | 4.0 t/h / 4.41 ton/h | 6.0 t/h / 6.61 ton/h | 12.0 t/h / 13.23 ton/h |
Main Equipment
Equipment Performance Features
- 1. The discharge size can be adjusted. The equipment is fitted with a reduction gearbox for low speed and high torque.
- 2. The equipment uses chain-plate conveyor feeding for smoother material intake.
