WOOD WASTE RECYCLING LINE | PULVZ F-SERIES
Why Pellet Quality Risk Starts at the Raw-Material Entrance
For a biomass pellet plant, contamination control starts before the pellet mill. A Wood Pulverizer Machine with a project-confirmed magnetic separation stage and replaceable screen can turn incoming wood waste into a cleaner, more uniform feedstock while keeping particle size under control. This front-end approach helps the plant assess metal, chemical residue, bark, moisture, and ash risks before they move deeper into the process.
Why Sorting, Outsourcing, or Full Debarking Can Raise Cost
Manual Wood Splitting by Axe or Saw does not provide continuous feed or consistent particle size. Buying ready-made sawdust reduces the need for an in-house Wood Crushing Equipment stage, but it gives the plant less control over incoming material and supplier variation. Removing all bark to chase a lower ash result may raise handling and raw-material costs beyond the export price. A Wood Chipper produces chips, while a Wood Shredder normally focuses on coarse size reduction; neither should be selected solely because its name includes wood processing.
Why Pulvz Fits a Controlled Pellet Feedstock Route
Pulvz is positioned as a front-end Wood Pulverizer Machine for biomass raw-material crushing. The F-series uses a feed inlet, a crushing chamber, a rotating working assembly, and a replaceable screen so the operator can define the particle-size route around the downstream process. The equipment-center material lists a Magnetic Separator for Wood Crusher before crushing; because this configuration is not confirmed as standard across every F-series model, the magnetic stage, installation position, and treatment of nailed waste pallets should be confirmed for the project. A Cyclone Separator or dust-collection connection can also be evaluated with the line layout.
What the Equipment Evidence Means for the Final Result

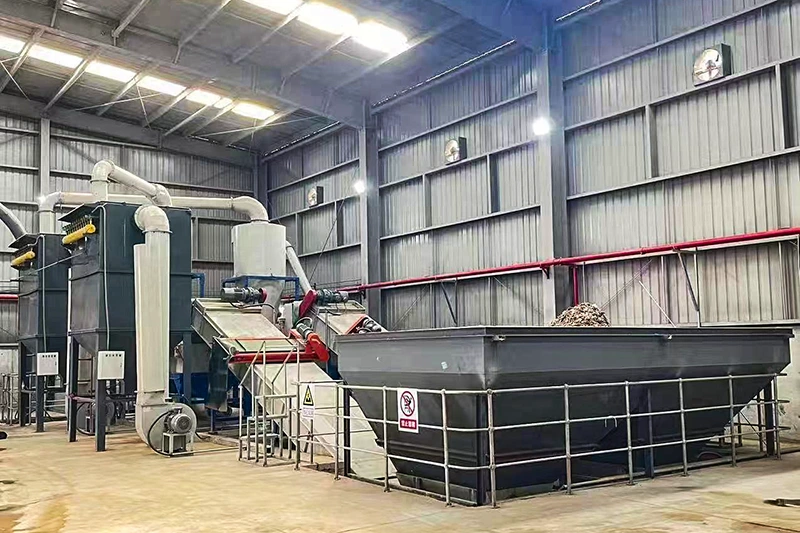

The published F-series range covers F-800, F-1000, F-1200, and F-1500, with nominal capacities from 1–2 t/h to 5–8 t/h, 45–110 kW main motors, and screen widths from 780 to 1480 mm. The equipment-center reference gives ≤5 mm as a uniform particle target, while the product brief commonly uses about 2–5 mm; actual output depends on wood type, moisture, feed uniformity, and screen condition. The image comparison shows the intended coarse-to-fine size-reduction logic, and the receiving-hopper image provides a visual anchor for controlled feeding and dust-collection planning. Before pelletizing, test the feedstock for metal, chemical residues, bark content, moisture, and ash, then verify the required A1 and export specifications with the buyer or certification body. Contact EMP to match the screen, magnetic-separation arrangement, feeding system, and capacity to your material test.
- Pellet plants face raw-material risks from metal, chemical residues, bark, moisture, and ash before the biomass pellet production line.
- Manual sorting, ready-made sawdust, or full debarking can increase labor and cost while leaving particle-size variation and upstream quality risk.
- Pulvz uses replaceable or adjustable screens for particle size control, while magnetic separation before crushing is an equipment-center option that requires project confirmation.
- The intended result is cleaner and more uniform feedstock, with a stated target of ≤5 mm particles for downstream drying, mixing, and pelletizing checks.
